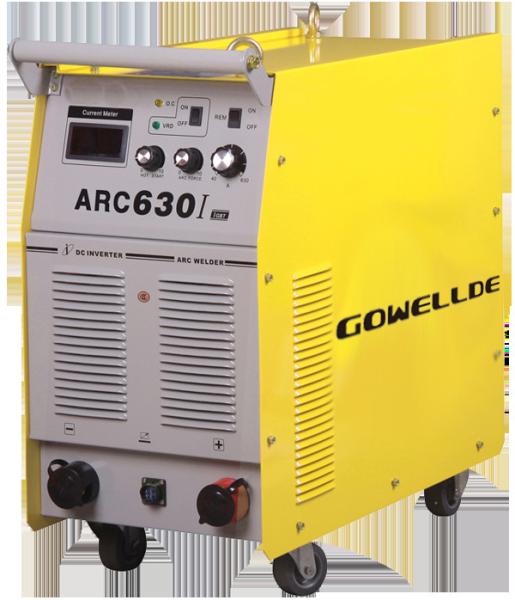

ARC630I IGBT ARC MMA Inverter Welder 500amps Moisture Proof
Arc630i Igbt Industrial Use ARC MMA Welder 500amps Moisture Proof
Heavy duty industrial machines. Top class ARC 630I . Inside advanced tri-proof cooling
system design,dust-proof,moisture-proof and eroding-proof. So machine is more reliable
and durable.Also the duty cycle is 100% at 40 degree.The machine can work continuously
weld¢5.0mm rod even if spread 100meters cable.Hot start and arc force adjustment are
available.So it is very good for arc striking and anti-sticking.And also VRD function is selected.
Transformer is nanometer material,can work under very high temperature.Efficiency and power
factor is over 90%,so machine is a green energy-saving product.Acidic and basic electrode can
be used well.Suitable for steel structure and fabrication workshop.
Parameter Specification:
| Model |
ARC 630 I |
| Voltage(V) |
3~AC380V±15% |
| Frequency(Hz) |
50-60 |
| Input Power(KVA) |
32.5 |
| No-load Voltage(V) |
84 |
| Current Range(A) |
30-590 |
| Rated Duty Cycle |
80% |
| Applied Welding Rod(mm) |
¢1.6-6.0 |
| Power Factor |
0.93 |
| Efficiency(%) |
85 |
| Insulation Grade |
F |
| Housing Protection Grade |
IP21S |
| Weight(Kg) |
50 |
| (L*W*H)(mm) |
650*310*520 |
| Carton CBM(m3) |
0.21 |
| Specification |
| Capacitor |
60UF/700V*2,60UF/800V*1 |
| IGBT |
100A/1200V *2 |
| Output Rectifier |
MURP200600CT*4 |
Stable arc: ARC MMA Welder adopts DC output mode, with stable arc and good welding effect.
Strong adaptability: ARC MMA Welder is suitable for welding a variety of materials, including steel, copper, aluminum, etc., and is suitable for a variety of welding thicknesses.
EASY TO OPERATE: The ARC MMA Welder is simple to operate, requiring only proper welding skills and practical experience.
Suitable for outdoor welding: ARC MMA Welder can be used by external power sources such as generators, and is suitable for welding needs in outdoor environments.
Inexpensive: Compared to other welding equipment, the ARC MMA Welder is affordable and has low maintenance costs.
Faster Welding Speed: Compared to other handheld arc welders, the ARC MMA Welder welds faster for more efficient welding.
